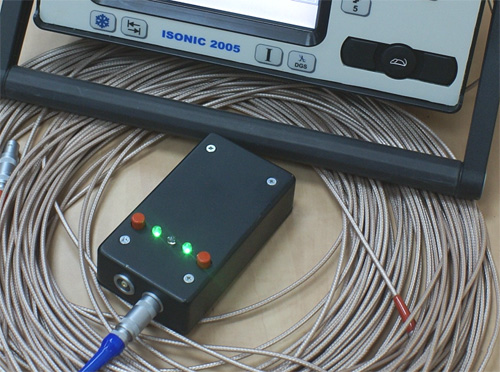

Fixed Gain Dual Channel Preamplifier Return to Sonotron NDT Home Page SA 80442 Fixed Gain Dual Channel Preamplifier Package Including: Dual Channel Preamplifier Set of 2 low noise coaxial cables (10 meters length each) for connection to the signal input of ISONIC instrument Technical Data Independent Channels: 2 Frequency Band: 0.2…25 MHz at -3 dB Advanced Low Noise Design: 34 nV peak to peak input referred to 20 dB gain / 25 MHz bandwidth Gain: 20 dB Output Impedance: 50 Ω Output Driving Capacity – Cable Length: ≤ 30m Terminals: Input 2 X LEMO 00 Output 2 X LEMO 01 Power: 4 X Dry Alkaline Batteries AA Size Flashing LED Indicators: Channel 1 Switch ON Channel 2 Switch ON Low Battery Housing: Sealed IP 67 Rugged Aluminum Case Dimensions: 62 X 30 X 112 mm (2.44 X 1.18 X 4.4 “) Weight: 320 g (0.7 lbs) SA 80442 Fixed Gain Dual Channel Preamplifier Package from Sonotron NDT improves long cable connection to ultrasonic probes, which may be required in NDT practice very often. Typical applications are TOFD, Corrosion Detection, and the like implemented through use of probes fitted into the scanner / crawler frame Download High Resolution PDF Brochure - Acrobat Reader 9 is recommended Download Low Resolution PDF Brochure - Acrobat Reader 9 is recommended
